Cabinet Type Air-conditioner Outdoor Unit Motor

YDK ( series) Motor

Model No.

Power(W)

Voltage(V)

Frequency(HZ)
Speed regulating
Number of  poles

Noise(db)
YDK(1)-35-4D
35
200-240
50
123
4
42
YDK(1)-40-4D
40
200-240
50
123
4
42
YDK(1)-50-4D
50
200-240
50
123
4
42
YDK(1)-60-4D
60
200-240
50
123
4
42
YDK(1)-70-4D
70
200-240
50
123
4
42
YDK(1)-35-6D
35
200-240
50
123
6
42
YDK(1)-40-6D
40
200-240
50
123
6
42
YDK(1)-50-6D
50
200-240
50
123
6
42
YDK(1)-60-6D
60
200-240
50
123
6
42
YDK(1)-70-6D
70
200-240
50
123
6
42

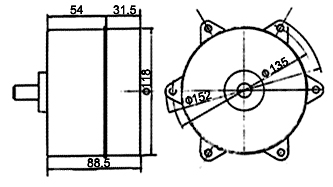

Dimension & mounting Size:

115 Iron-cored Steel-clad Motor
L1
L
L3
D1
D
D3
31.5
54
88.5
118
135
152

NOTES 1.          THIS MOTOR MEETS CCEE SPECIFICATION (CHINESE NATIONAL STANDARD). 2.          OEM TECHNICAL PARAMETER FROM CLIENT TO MAKE SIMILAR TYPE OF MOTOR IS WELCOME. 3.          THE TWO TOP-ENDS OF THIS MOTOR ARE WELDED INTO SHAPE WITH MATERIAL OF      STAINLESS STEEL PLATE. 4.          ZINC/DICHROMATE PLATED HARDWARE IS THROUGHOUT. 5.          STATOR IS COATED WITH BLACK WATER PAINT.     6.          ROTATOR SURFACE IS COATED WITH RUST INHIBITOR. 7.          THERMOSTATIC PROTETOR IS ASSEMBLIED IN THIS MOTOR.     8.          MOTOR CONNECTION LEADS IS ATTACHED TO PVC FLEXIBLE WIRE RV105 IN UL APPROVAL. 9.          THIS MOTOR IS APPLICABLE TO CABINET TYPE AIR CONDITIONER OUTDOOR UNIT 2PH,      3PH, 5PH.
