Cabinet Type Air-conditioner Outdoor Unit Motor

YDK ( series) Motor


Model No.

Power(W)

Voltage(V)

Frequency(HZ)
Speed regulating
Number of  poles

Noise(db)
YDK-30-4D
30
200-240
50
123
4
42
YDK-35-4D
35
200-240
50
123
4
42
YDK-40-4D
40
200-240
50
123
4
42
YDK-50-4D
50
200-240
50
123
4
42
YDK-60-4D
60
200-240
50
123
4
42
YDK-70-4D
70
200-240
50
123
4
42
YDK-70-6D
70
200-240
50
123
6
42
YDK-80-4D
80
200-240
50
123
4
42
YDK-80-6D
80
200-240
50
123
6
42
YDK-90-4D
90
200-240
50
123
4
42
YDK-90-6D
90
200-240
50
123
6
42
YDK-100-4D
100
200-240
50
123
4
42
YDK-100-6D
100
200-240
50
123
6
42
YDK-110-4D
110
200-240
50
123
4
42
YDK-110-6D
110
200-240
50
123
6
42
YDK-120-4D
120
200-240
50
123
4
42
YDK-120-6D
120
220-240
50
123
6
42

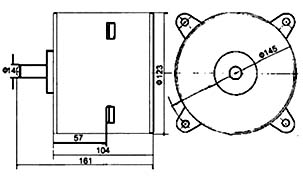

Dimension & mounting Size:

118 Iron-cored Steel-clad Motor
L1
L
L3
D1
D
D3
57
115
172
14
145
123
57
104
161
14
145
123

NOTES 1.          THIS MOTOR MEETS CCEE SPECIFICATION (CHINESE NATIONAL STANDARD).      2.          OEM TECHNICAL PARAMETER FROM CLIENT TO MAKE SIMILAR TYPE OF MOTOR IS WELCOME. 3.          THE TWO TOP-ENDS OF THIS MOTOR ARE WELDED INTO SHAPE WITH MATERIAL OF      STAINLESS STEEL PLATE. AND THE MATERIAL OF ALUMINIUM-ALLOY IS CAST INTO THE      SHAPE OF TOP-END. 4.          MOTOR ASSEMBLY IS TOP COATED WITH ANTIRUST PAINT IN GOOD FINISH. AND THE INNER      OF THE TOP-END IS COATED WITH ANTIRUST PAINT, TOO. 5.          ZINC/DICHROMATE PLATED HARDWARE THROUGHOUT. 6.          STATOR IS COATED WITH BLACK WATER PAINT. 7.          ROTATOR SURFACE IS COATED WITH RUST INHIBITOR.      8.          THERMOSTATIC PROTETOR IS ASSEMBLIED IN THIS MOTOR.    9.          MOTOR CONNECTION LEADS ATTACHED TO PVC FLEXIBLE WIRE RV105 IN UL APPROVAL.      10.       THIS MOTOR IS APPLICABLE TO SPLIT TYPE AIR CONDITIONER OUTDOOR UNIT 1PH,      1.5PH, 2PH.
