Split Type Air-conditioner Outdoor Unit Motor

YDK ( series) Motor


Model No.

Power(W)

Voltage(V)

Frequency(HZ)
Speed regulating
Number of  poles

Noise(db)
YDK(1)-10-4B
10
200-240
50
123
4
42
YDK(1)-15-4B
15
200-240
50
123
4
42
YDK(1)-20-4B
20
200-240
50
123
4
42
YDK(1)-25-4B
25
200-240
50
123
4
42
YDK(1)-30-4B
30
200-240
50
123
4
42
YDK(1)-40-4B
40
200-240
50
123
4
42
YDK(1)-30-6B
30
200-240
50
123
6
42
YDK(1)-40-6B
40
200-240
50
123
6
42
YDK(1)-50-6B
50
200-240
50
123
6
42
YDK(1)-60-6B
60
200-240
50
123
6
42

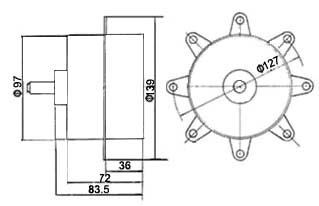

Dimension & mounting Size:

94 Iron-cored Steel-clad Motor


L1
L
L3
D1
D
D3
72
83.5
36
97
139
127
87.5
99
36
97
139
127
NOTES 1.          THIS MOTOR MEETS CCEE SPECIFICATION (CHINESE NATIONAL STANDARD). 2.          OEM TECHNICAL PARAMETER FROM CLIENT TO MAKE SIMILAR TYPE OF MOTOR IS WELCOME. 3.          THE TWO TOP-ENDS OF THIS MOTOR ARE WELDED INTO SHAPE WITH MATERIAL OF      STAINLESS STEEL PLATE. 4.          ZINC/DICHROMATE PLATED HARDWARE IS THROUGHOUT.    5.          STATOR IS COATED WITH BLACK WATER PAINT.     6.          ROTATOR SURFACE IS COATED WITH RUST INHIBITOR.     7.          THERMOSTATIC PROTETOR IS ASSEMBLIED IN THIS MOTOR.     8.          MOTOR CONNECTION LEADS IS ATTACHED TO PVC FLEXIBLE WIRE RV105 IN UL APPROVAL. 9.          THIS MOTOR SERIES IS APPLICABLE TO SPLIT TYPE AIR CONDITIONER OUTDOOR UNIT      1PH, 1.5PH, 2PH.
