Window Type Air-conditioner motor

YSK ( series) Motor

Model No.

Power(W)

Voltage(V)

Frequency(HZ)
Speed regulating
Number of  poles

Noise(db)
YSK(1)-25-4A
25
220-240
50
123
4
42
YSK(1)-30-4A
30
220-240
50
123
4
42
YSK(1)-35-4A
35
220-240
50
123
4
42
YSK(1)-40-4A
40
220-240
50
123
4
42
YSK(1)-45-4A
45
220-240
50
123
4
42
YSK(1)-50-4A
50
220-240
50
123
4
42
YSK(1)-60-4A
60
220-240
50
123
4
42
YSK(1)-30-6A
30
220-240
50
123
6
42
YSK(1)-40-6A
40
220-240
50
123
6
42
YSK(1)-50-6A
50
220-240
50
123
6
42
YSK(1)-60-6A
60
220-240
50
123
6
42

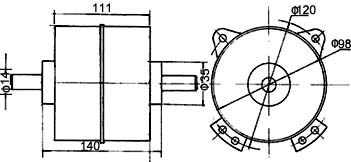

Dimension & mounting Size:

94 Iron-cored Steel-clad Motor


L1
L
D1
D
D3
D4
111 140
14
98
35
120
101.5 130.5
14
98
35
120
NOTES 1.        THIS MOTOR MEETS CCEE SPECIFICATION (CHINESE NATIONAL STANDARD).      2.        OEM TECHNICAL PARAMETER FROM CLIENT TO MAKE SIMILAR TYPE OF MOTOR IS     WELCOME 3.        THIS MOTOR IS SUPPLIED WITH STAINLESS STEEL PLATE.      4.        ZINC/DICHROMATE PLATED HARDWARE IS THROUGHOUT.      5.        STATOR IS COATED WITH BLACK WATER PAINT.     6.        ROTATOR SURFACE IS COATED WITH RUST INHIBITOR.     7.        THERMOSTATIC PROTETOR IS ASSEMBLIED IN THIS MOTOR.      8.        MOTOR CONNECTION LEADS IS ATTACHED TO PVC FLEXIBLE WIRE RV105 IN UL     APPROVAL. 9.        THIS MOTOR IS APPLICABLE TO WINDOW TYPE AIR CONDITIONER 3/4PH, 1PH, 1.5PH,     2PH.
