Window Type Air-conditioner motor

YSK ( series) Motor

Model No.

Power(W)

Voltage(V)

Frequency(HZ)
Speed regulating
Number of  poles

Noise(db)
YSK(2)-25-4A
25
220-240
50
123
4
42
YSK(2)-30-4A
30
220-240
50
123
4
42
YSK(2)-35-4A
35
220-240
50
123
4
42
YSK(2)-40-4A
40
220-240
50
123
4
42
YSK(2)-45-4A
45
220-240
50
123
4
42
YSK(2)-50-4A
50
220-240
50
123
4
42
YSK(2)-60-4A
60
220-240
50
123
4
42
YSK(2)-30-6A
30
220-240
50
123
6
42
YSK(2)-40-6A
40
220-240
50
123
6
42
YSK(2)-50-6A
50
220-240
50
123
6
42
YSK(2)-60-6A
60
220-240
50
123
6
42

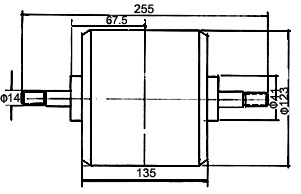

Dimension & mounting Size:

120Iron-cored Steel-clad Motor


L1
L
L3
D1
D2
D3
67.5 135
255
14
41
123
62 124
244
14
41
123
NOTES 1.        THIS MOTOR MEETS CCEE SPECIFICATION (CHINESE NATIONAL STANDARD).      2.        OEM TECHNICAL PARAMETER FROM CLIENT TO MAKE SIMILAR TYPE OF MOTOR IS     WELCOME 3.        THE SHELL OF THIS MOTOR IS WELDED INTO SHAPE WITH MATERIAL OF STAINLESS     STEEL PLATE.AND THE MATERIAL OF ALUMINIUM-ALLOY IS CAST INTO THE SHAPE OF     TOP-END.      4.        MOTOR ASSEMBLY IS COATED WITH ANTIRUST PAINT IN GOOD DINISH. AND THE INNER     OF THE TOP-END IS COATED WITH ANTIRUST PAINT,TOO. 5.        ZINC/DICHROMATE PLATED HARDWARE IS THROUGHOUT.     6.        STATOR IS COATED WITH BLACK WATER PAINT.     7.        ROTATOR SURFACE IS COATED WITH RUST INHIBITOR.      8.        THERMOSTATIC PROTETOR IS ASSEMBLIED IN THIS MOTOR.     9.        MOTOR CONNECTION LEADS IS ATTACHED TO PVC FLEXIBLE WIRE RV105 IN UL     APPROVAL. 10.   THIS MOTOR IS APPLICABLE TO WINDOW TYPE AIR CONDITIONER 3/4PH, 1PH, 1.5PH,     2PH.
