Air Curtain Machine Unit Motor

Model No.

Power(W)

Voltage(V)

Frequency(HZ)
Rpm.

Noise(db)
ACM-100
100
200-240
50
900,720
42
ACM-75
75
200-240
50
900,720
42
ACM-30
30
200-240
50
1380,1100
42

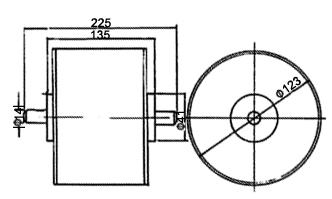

Dimension & mounting Size:
L1
L
D1
D2
D3
135
225
14
41
123

NOTES 1.          THIS MOTOR MEETS CCEE SPECIFICATION (CHINESE NATIONAL STANDARD).     2.          OEM TECHNICAL PARAMETER FROM CLIENT TO MAKE SIMILAR TYPE OF MOTOR IS WELCOME. 3.          THE SHELL OF MOTOR IS WELDED WITH GOOD QUALITY OF STEEL STAINLESS PLATE. AND      THE FRONT AND REAR TOP-ENDS ARE CAST INTO SHAPE WITH ALUMINIUM ALLOY. 4.          ZINC/DICHROMATE PLATED HARDWARE IS THROUGHOUT.     5.          STATOR IS COATED WITH BLACK WATER PAINT. 6.          ROTATOR SURFACE IS COATED WITH RUST INHIBITOR.     7.          THERMOSTATIC PROTETOR IS ASSEMBLIED IN THIS MOTOR.     8.          MOTOR CONNECTION LEADS IS ATTACHED TO PVC FLEXIBLE WIRE RV105 IN UL APPROVAL. 9.          THIS MOTOR SERIES IS APPLICABLE TO AIR CURTAIN MACHINE MOTOR.
