Massage Machine Unit Motor

Model No.

Power(W)

Voltage(V)

Frequency(HZ)
Rpm.

Noise(db)
MMM-70
70
200-240
50
1400
42
MMM-80
80
200-240
50
1400
42
MMM-90
90
200-240
50
1400
42
MMM-100
100
200-240
50
1400
42

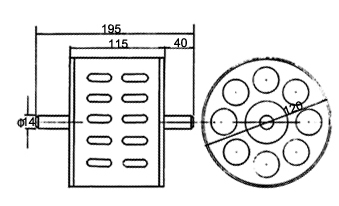

Dimension & mounting Size:
L1
L
L3
D1
D2
40
115
195
1
120

NOTES 1.          THIS MOTOR MEETS CCEE SPECIFICATION (CHINESE NATIONAL STANDARD). 2.          OEM TECHNICAL PARAMETER FROM CLIENT TO MAKE SIMILAR TYPE OF MOTOR IS WELCOME. 3.          THE SHELL OF THIS MOTOR IS WELDED INTO SHAPE WITH STEEL STAINLEE PLATE IN GOOD      QUAQLITY. AND THE FRONT AND REAR TOP-ENDS ARE MADE INTO SHAPE BY ALUMINIUM      ALLOYED DIE-CASTING. 4.          MOTOR ASSEMBLY IS TOP COATED WITH ANTIRUST PAINT IN GOOD FINISH.     5.          ZINC/DICHROMATE PLATED HARDWARE IS THROUGHOUT. 6.          STATOR IS COATED WITH BLACK WATER PAINT.     7.          ROTATOR SURFACE IS COATED WITH RUST INHIBITOR. 8.          THERMOSTATIC PROTETOR IS ASSEMBLIED IN THIS MOTOR.     9.          MOTOR CONNECTION LEADS IS ATTACHED TO PVC FLEXIBLE WIRE RV105 IN UL APPROVAL. 10.       THIS MOTOR SERIES IS APPLICABLE TO MASSAGE MOTOR.
