Range Hood Unit Motor

Model No.

Power(W)

Voltage(V)

Frequency(HZ)
Unloading RPM.

Noise(db)
RHM-45
45
200-240
50
1450
43
RHM-70
70
200-240
50
1450
43
RHM-80
80
200-240
50
1450
43

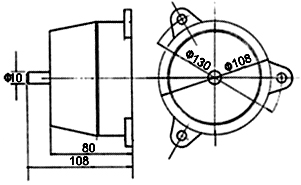

Dimension & mounting Size:
L1
L
D1
D2
D3
80
108
10
108
130

NOTES 1.          THIS MOTOR MEETS CCEE SPECIFICATION (CHINESE NATIONAL STANDARD). 2.          OEM TECHNICAL PARAMETER FROM CLIENT TO MAKE SIMILAR TYPE OF MOTOR IS WELCOME. 3.          THE FRONT AND REAR SHELL OF THIS MOTOR ARE CAST INTO SHAPE WITH ALUMINIUM      ALLOY. 4.          ZINC/DICHROMATE PLATED HARDWARE IS THROUGHOUT. 5.          STATOR IS COATED WITH BLACK WATER PAINT.     6.          ROTATOR SURFACE IS COATED WITH RUST INHIBITOR. 7.          THE MOTOR BEARING IS USED TWO SIDED SEALED CLOSE AND LOW NOISE BALL BEARING. 8.          THERMOSTATIC PROTETOR IS ASSEMBLIED IN THIS MOTOR.     9.          MOTOR CONNECTION LEADS IS ATTACHED TO PVC FLEXIBLE WIRE RV105 IN UL APPROVAL. 10.       THIS MOTOR SERIES IS APPLICABLE TO RANGE HOOD SERIES.  .
